- Specification Description:Size: 1020*1200mm

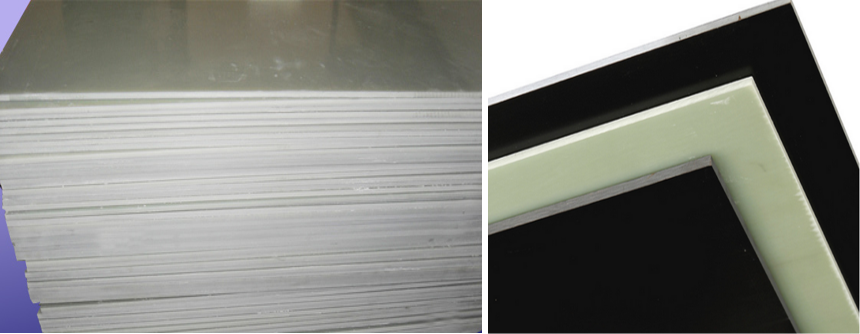

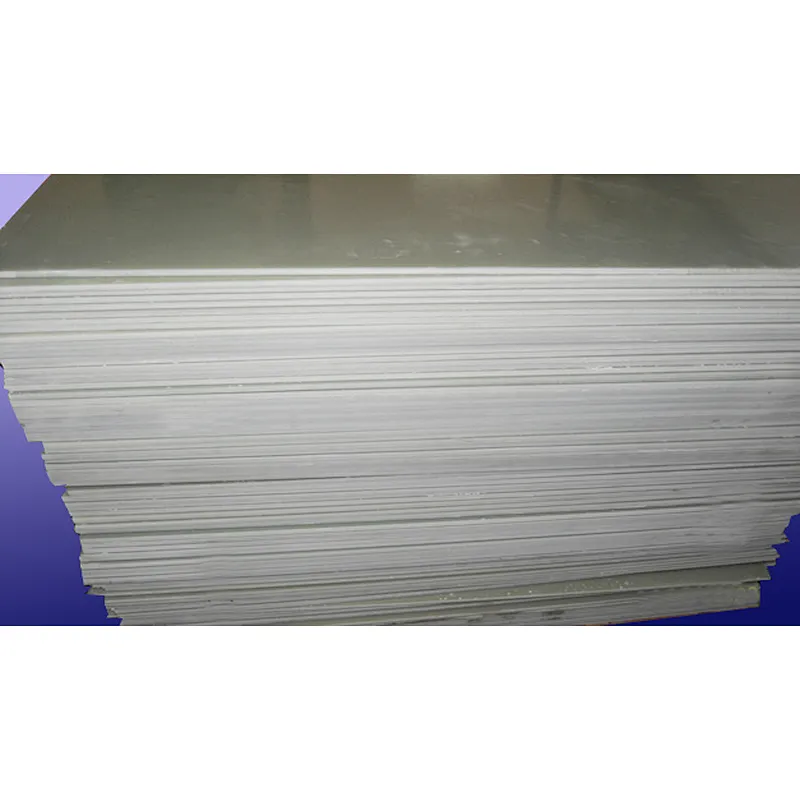

FR-4 Full antistatic glass fiber epoxy sheet
This laminated product is formed through heat pressing after electric industry alkali glass cloth dips into the epoxy phenolic resin.
It has high mechanic and dielectric performance, and applicable as insulation structural components for electromechanical/electrical equipment, as well as used under damp environmental conditions and transformer oil.
The surface of laminated board should be flat and smooth, no bubble, no wrinkle, no delamination or crackle, and properly free from other defects such as scrape, impress,dirty spot and uneven color, but a little color patches is allowed.
The surface of laminated board should be flat and smooth, no bubble, no wrinkle, no delamination or crackle, and properly free from other defects such as scrape, impress, dirty spot and uneven color, but a little color patches is allowed.
Name: | ESD epoxy sheet |
Size: | 1020*1200mm |
Thickness: | 1-50mm |
Color: | Light Green, Black. |
The Anti-static index: | 10^6-10^9 |
| Feature | |
| High mechanical properties, and oil resistance and certain dielectric property. | |
| Thermal rating is 120, and temperature resistance : 150 centidegrees | |
| Withstand a variety of chemical solvents and acid erosion | |
| Application | |
| Chemical machine parts, general machine parts and gear, and generators, Pads, base, baffle etc.. Generator,transformer, fixture, inverter, motor and electric insulation component. | |
