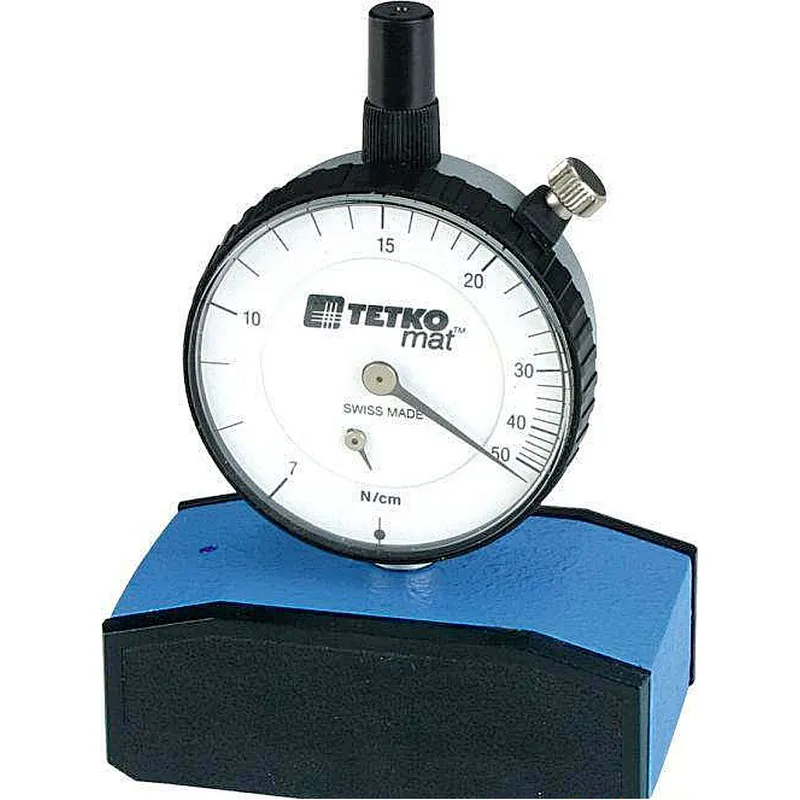

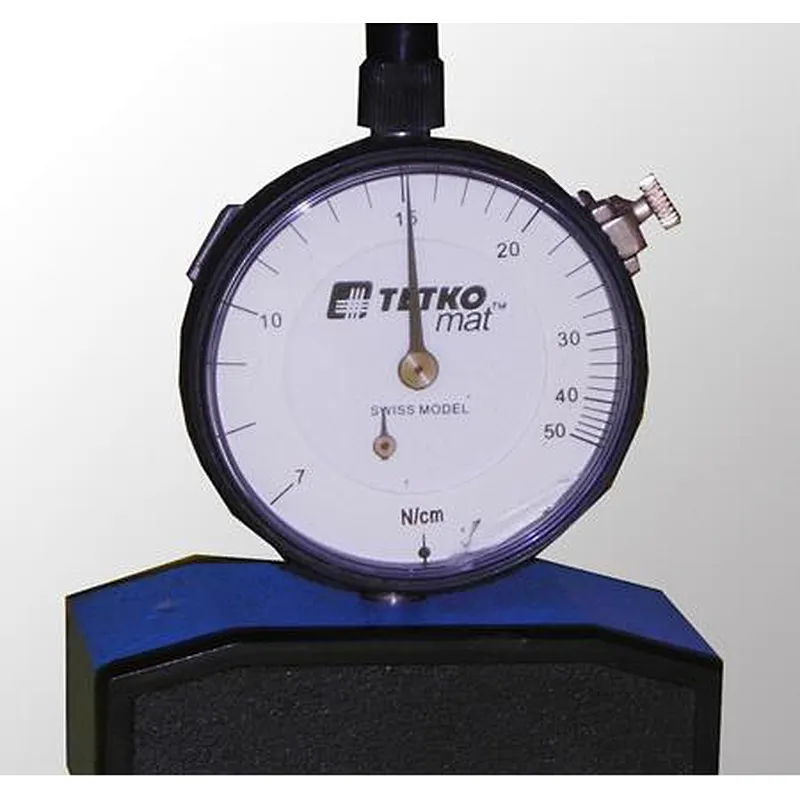

Fabric Tension meter
TETKOMAT 7-50N/CM
| Advantages | |
| An accurate gauge: | The TETKOMAT is made in Switzerland and its Calibration according to the standards of DIN16611 with working in relative measurement, It enjoys great reputation for many years due to accurate measurement for the tension. |
| Shockproof function: | The gauge is equipped with a build-in vibration absorber to greatly lighten the damage when it drops or uses in a wrong way. Nevertheless, it is advisable to check the gauge after an accident. |
| Measuring range: | It offers with a reliable, simply, fast and all-wave fabric tension measurement in the tension range of 7-50N/CM and it can also avoid the errors when the fabric measured by human hands or touch feelings. |
Operation：
The gauge operates mechanically with no battery or power.It is easy to use, quick adjustment process and display correctly, which makes the completely same tension for each screen.
| The gauge not only offers a reliable measurement, but also many other advantages: |
| measuring the new and old fabric accurately before stretching. |
| There will be a page of examine certificate with each TETKOMAT gauge before it sales out. |
| Principle of measurement: Under the constant power, mechanically measurement to fabric Elasticity. |
| The value of measuring: N/CM (=0.102kp/cm). Saving time to exchange the units. |
| Measuring range: 7-50N/cm, Tolerance: ±5% of the measuring range. |
| Gauge weight: 500g. |
| Gauge and package weight: about 850g. |
| Gauge dimensions: 108mm*76mm*44mm. |
| Package dimensions: 229mm*200mm*76mm. |
