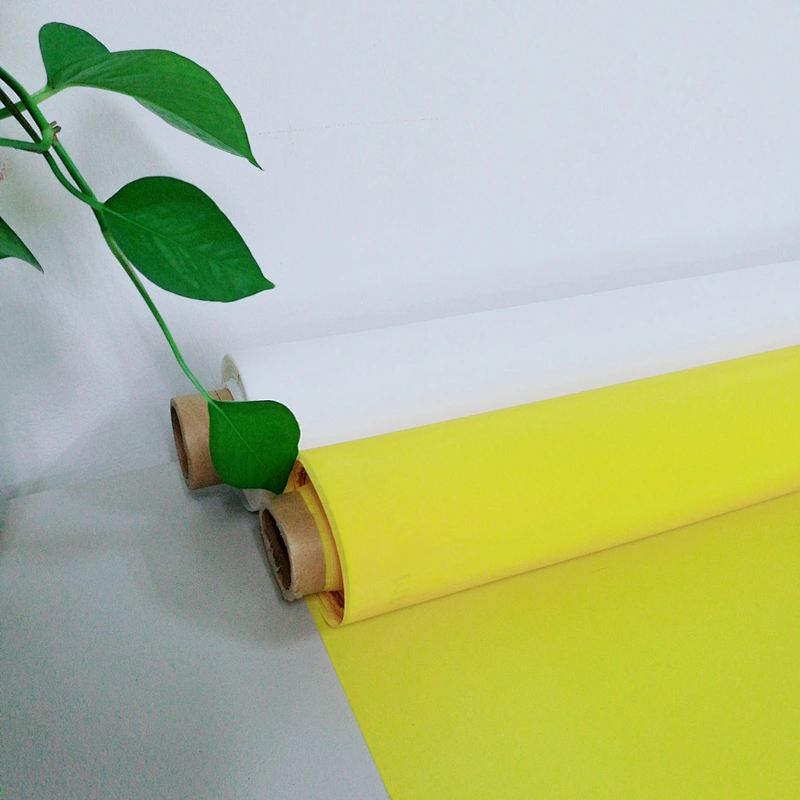

Polyester mesh
IST offers polyester mesh to be used in textile printing, plate making printing, electronic printing, ceramics, glass stained paper printing, label plate, advertising and filtering.

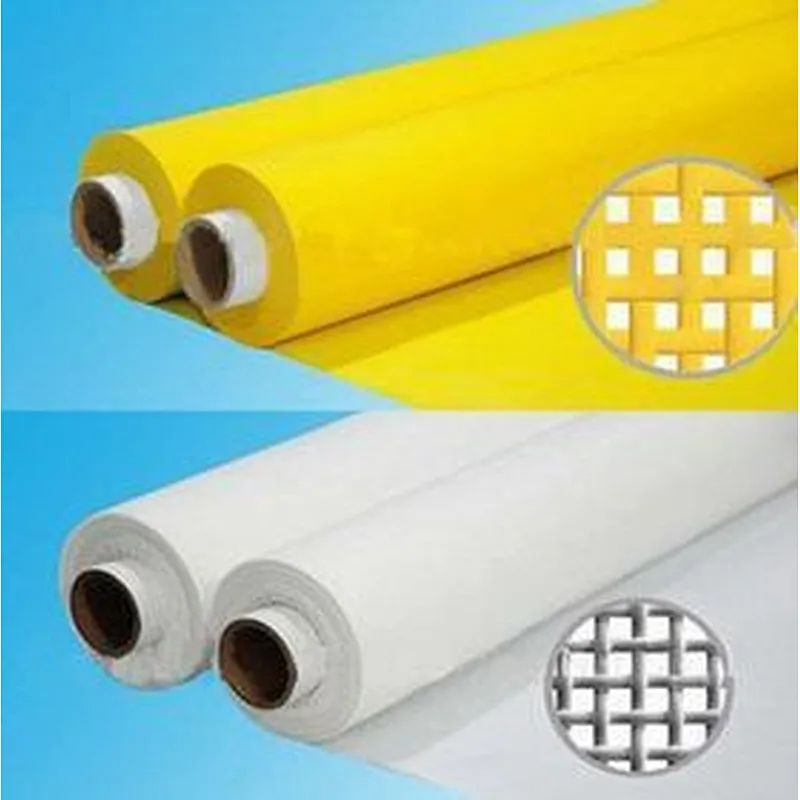

Our silk mesh is produced from polyester mono-filament yarn.
Characteristics:
• The better durability of screen life and stretchability.
• Higher tension levels.
• Faster tension stabilization.
• Precision bore, well-distributed, stabilization, superior stencil adhesion.
• Good ink and paste release behavior.
• Time-dependent stability and good cohesion with sensitive emulsion.
• Increased resistance to abrasion and harsh reclaiming chemicals.

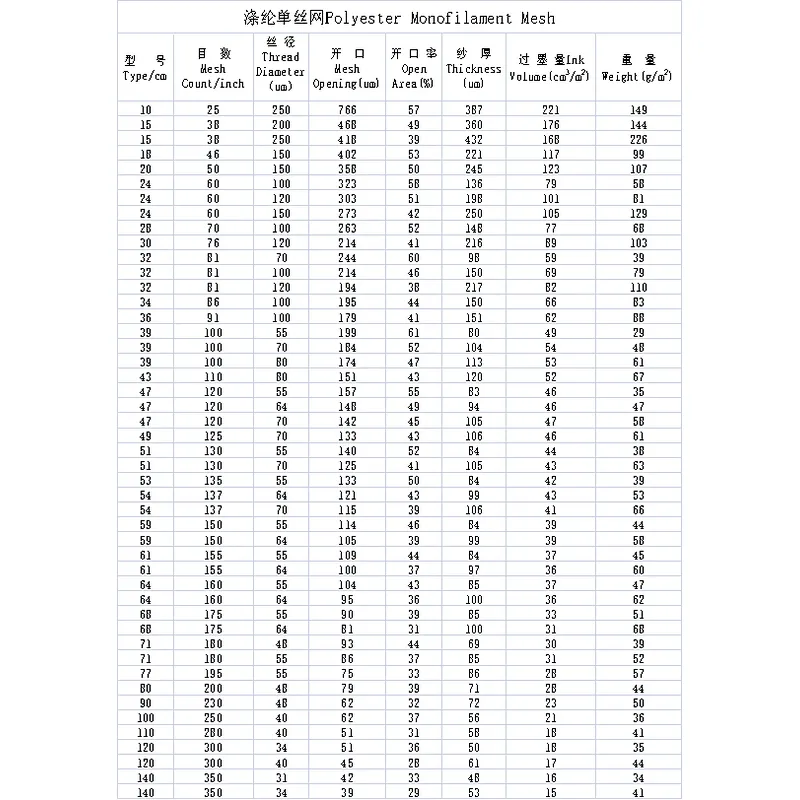

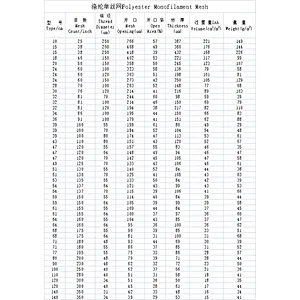

| Mesh count | Thread diameter | Mesh opening | Open surface | Width | Color |
| cm/inch | micron | micron | % | inch | / |
| 10T/25 | 250 | 740 | 53 | 63 | white |
| 16T/40 | 200 | 435 | 47 | 63 | white |
| 24T/60 | 150 | 270 | 42 | 63 | white |
| 29T/74 | 120 | 223 | 42 | 63 | white |
| 36T/90 | 100 | 189 | 46 | 63 | white |
| 43T/110 | 80 | 150 | 42 | 63 | white |
| 51T/130 | 71 | 124 | 40 | 63 | white |
| 64T/160 | 55 | 103 | 42 | 63 | white |
| 72T/180 | 55 | 86 | 37 | 63 | white |
| 80T/200 | 48 | 79 | 38 | 63 | yellow |
| 90T/230 | 48 | 62 | 32 | 63 | yellow |
| 100T255 | 40 | 60 | 36 | 63 | yellow |
| 110T/280 | 40 | 48 | 27 | 63 | yellow |
| 120T/305 | 34 | 49 | 35 | 63 | yellow |
| 140T/355 | 34 | 37 | 27 | 63 | yellow |
| 150T/380 | 31 | 32 | 23 | 63 | yellow |
| 165T/420 | 31 | 23 | 15 | 63 | yellow |
